Urban Maille

Elfweave Round

Elfweave Round

Kitpacks are rings only. Choose your gauge and your metal. For information on the weave, scroll to the expandable section at the bottom of the page.

Regular price $267.05 USD
Regular price Sale price $267.05 USD
Sale Sold out
Shipping calculated at checkout.
Gauge
Metal
View full details

Collapsible content

About This Weave

I've been wanting to learn Elfweave for awhile now and I had some time over the holidays to sit down and get to know the weave. All the directions I found recommend sizes for making the sheet version of the weave, but I wanted to tighten that up a bit to make the single row, rope version. Aislyn pointed me to 4 sets of instructions and I settled on those from Wahnsinnig on MAIL as being the easiest to learn, but those from Derakon, Quizad Saderack on MAIL, and cohort on MAIL were also helpful.

After several tests, I found 3.7 to be the best aspect ratio for a single row. However, when I got to testing 20g I found that my closest ARs didn't really work -- 20g/2.875mm was a little too tight and 20g/3.0mm was too loose.

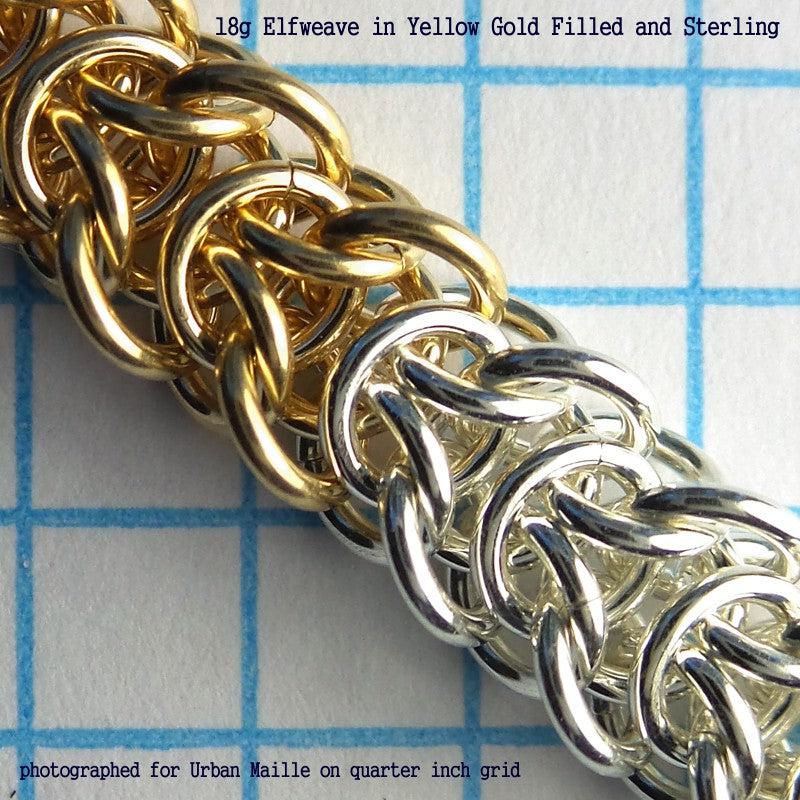

So for 20g, I used the 20g/2.875mm for the outside rows and 20g/3.0mm for the inside and it works perfectly. Also, using a different metal for the inside row makes a beautiful mixed pattern, so we've listed all of the sizes as 2 packs - (a) outside rows and (b) inside row - to give you the option of mixing and matching. All of the metals and combinations I've tested so far work perfectly and should be completely interchangable.

Another neat thing I discovered is that you can taper from one size to another easily just by starting with the center ring. So, for example to taper from 16g to 18g, just use the center ring from the next size down as your last locking ring. For 16g, use an 18g/3.75mm for the last ring (the point) and weave 18g from then on. Sizes for the sheet weave will most likely need to be a bit larger and I'm hoping to find the time to work on that next. Have fun and let me know if you want any other sizes or metals combinations tested.

-- Gary

Photo Gallery

Instructions

See About the Weave, above.

RIng Sizes

 Weave Shape Gauge ID (mm) RPI
Elfweave, Round 12g RD 12 7.500 12
Elfweave, Round 14g RD 14 6.000 18

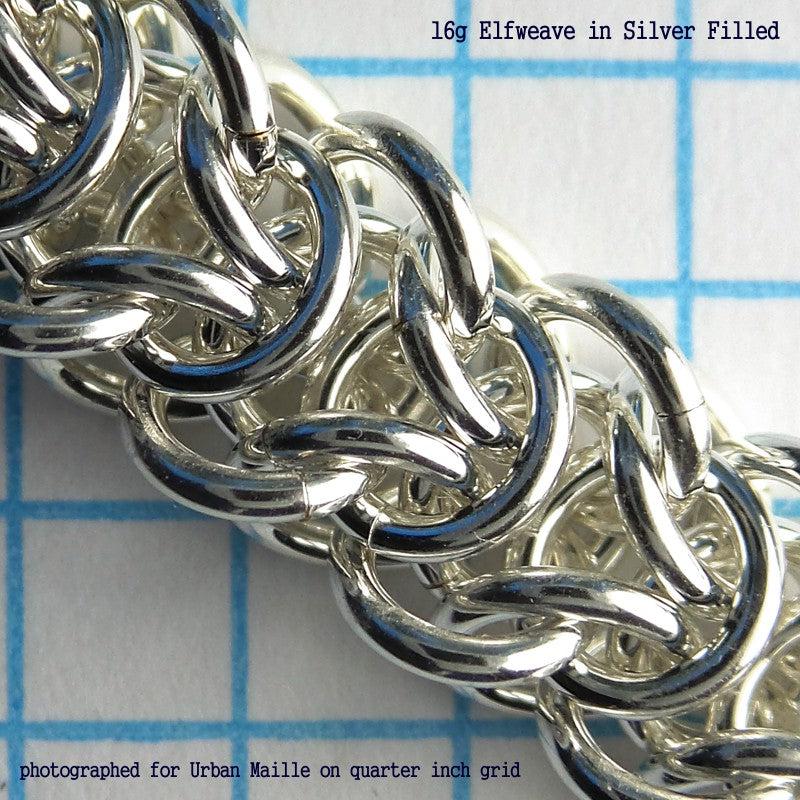

Elfweave, Round 16g RD 16 4.750 24
Elfweave, Round 18g RD 18 3.750 30
Elfweave, Round 20g RD 20 2.875 24
RD 20 3.000 12

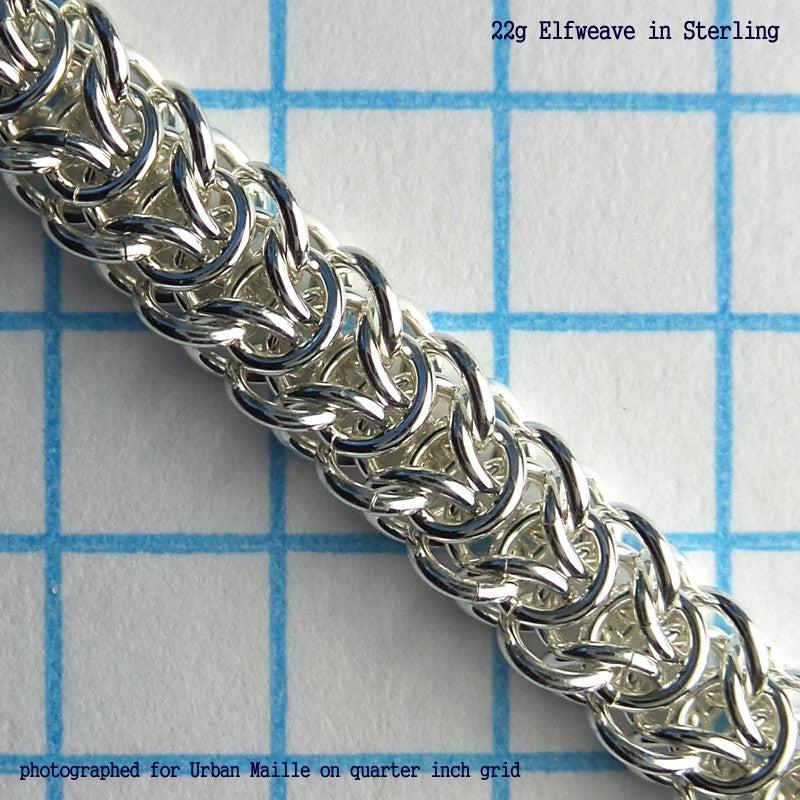

Elfweave, Round 22g RD 22 2.375 48
Elfweave, Round 24g RD 24 1.750 40
RD 24 1.875 20

As with all of our work, we invite you to make and sell as many of everything as you like, but ask that you don't publish our instructions or ring sizes.

Ideas

There's nothing in this section on any of the pages at the moment because it's taking a bit of time to assemble the photos, but it's going to be a gallery of what people have done with the weave or design.
